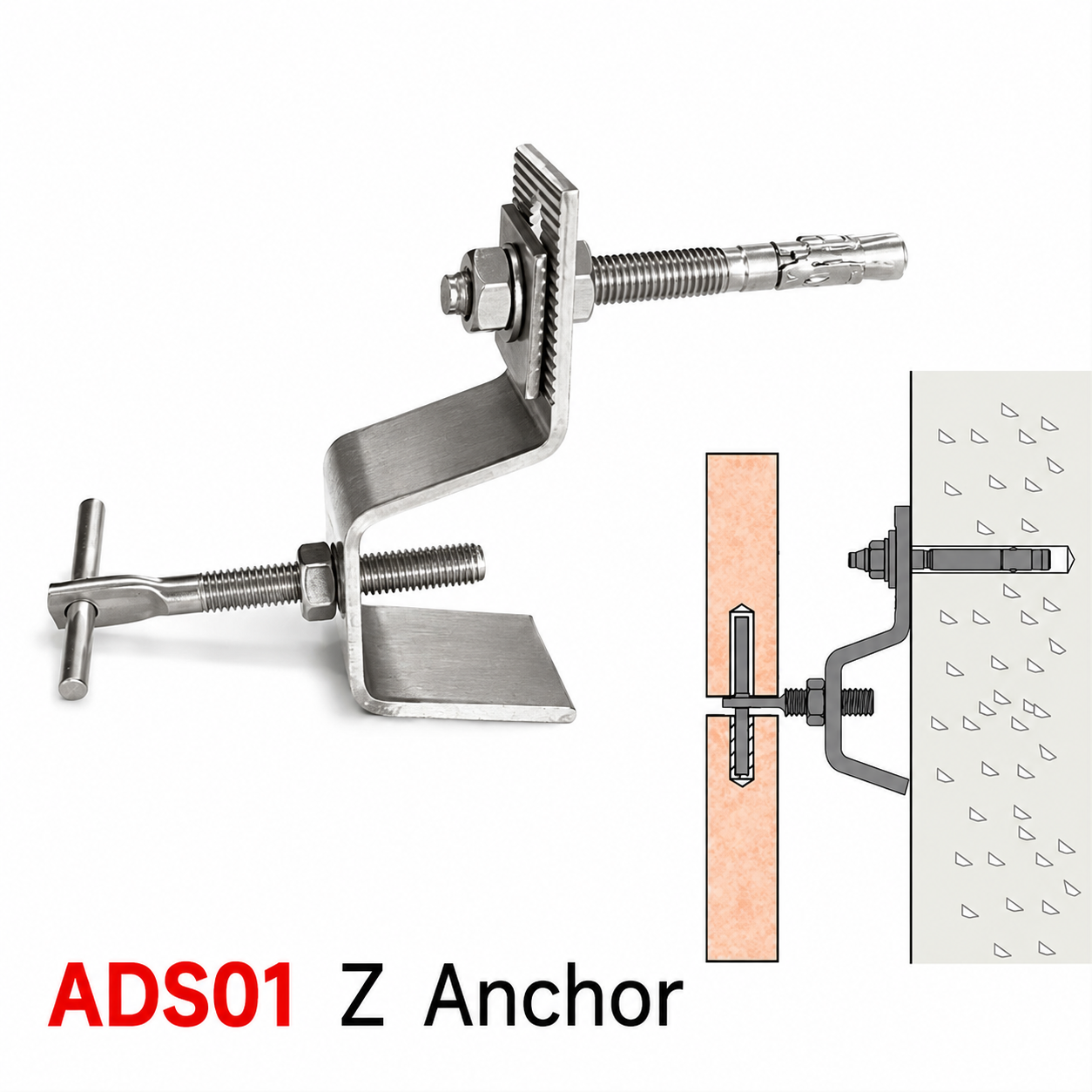

ADS01 Stainless Steel Z Bracket Stone Fixing System

for marble and stone cladding projects, with reference configurations for projection, load, bolt size, pin diameter and adjustable arm dimensions. Final selection should be confirmed by project drawings and installation requirements.

SKU: AOD-BHW-4701
Series: ADS01
Available Models: ADS01-452 to ADS01-1358
Category: Building Hardware
Manufacturing Process: Sheet metal forming, machining, welding and assembly
RFQ Type: Product inquiry / OEM review

Request Quote Email WhatsApp

Specification

Material	SS304 / SS316; EN 1.4301 / 1.4401 / 1.4404 / 1.4571 available upon request
Thickness	3-8 mm (Custom Available)
Standard	ADS01 project configuration; drawing-based confirmation required
Size	Projection 45-135 mm; stone thickness 20-50 mm; ADS01 dimension table available
Custom Dimensions	Dimensions can be customized according to project drawings.
Tolerance	Confirmed by drawing or project specification
Weight	Varies by bracket size and configuration
Surface Finish	Natural stainless steel / brushed / passivated options available
Manufacturing Process	Sheet metal forming, machining, welding and assembly
OEM / Custom Manufacturing	OEM / custom manufacturing available for project-specific dimensions, bracket shape, washer type, material grade, surface finish, and load requirements.
MOQ	Confirm after RFQ review
Lead Time	Confirm after RFQ review
Quality Standard	Dimensional inspection and material verification available

ADS01 Dimension Options

Reference configurations for RFQ review. Final dimensions, load requirements, material grade, bolt selection, and installation method should be confirmed by project drawings or engineering specifications.

Load Group Fdw (N)	AODSON Codes	Projection K (mm)	K- / K+ Range (mm)	Forming Size F (mm)	Wind Pressure / Suction (N)	Bolt / Pin	Adjustable Arm	Arm Length T (mm)
200	ADS01-452, ADS01-552, ADS01-752, ADS01-952	45 / 55 / 75 / 95	40 - 110	10 / 20 / 40 / 60	312 / 219	M8X80 / 5 mm	M10 / 3.5 mm	60 / 70
300	ADS01-553, ADS01-753, ADS01-953, ADS01-1153	55 / 75 / 95 / 115	45 - 130	20 / 40 / 60 / 80	468 / 328	M8X80 / 5 mm	M10 / 3.5 mm	60
400	ADS01-554, ADS01-754, ADS01-954, ADS01-1154	55 / 75 / 95 / 115	45 - 130	10 / 20 / 40 / 60	624 / 437	M8X80 / 5 mm	M12 / 4.5 mm	70 / 80
500	ADS01-755, ADS01-955, ADS01-1155, ADS01-1355	75 / 95 / 115 / 135	60 - 150	20 / 40 / 60 / 80	780 / 546	M8X80 / 5 mm	M12 / 4.5 mm	80
600	ADS01-756, ADS01-956, ADS01-1156, ADS01-1356	75 / 95 / 115 / 135	60 - 150	20 / 40 / 60 / 80	936 / 655	M10X90 / 6 mm	M14 / 5.5 mm	80
800	ADS01-758, ADS01-958, ADS01-1158, ADS01-1358	75 / 95 / 115 / 135	60 - 150	20 / 40 / 60 / 80	1235 / 865	M10X90 / 6 mm	M14 / 5.5 mm	80

How to Select ADS01

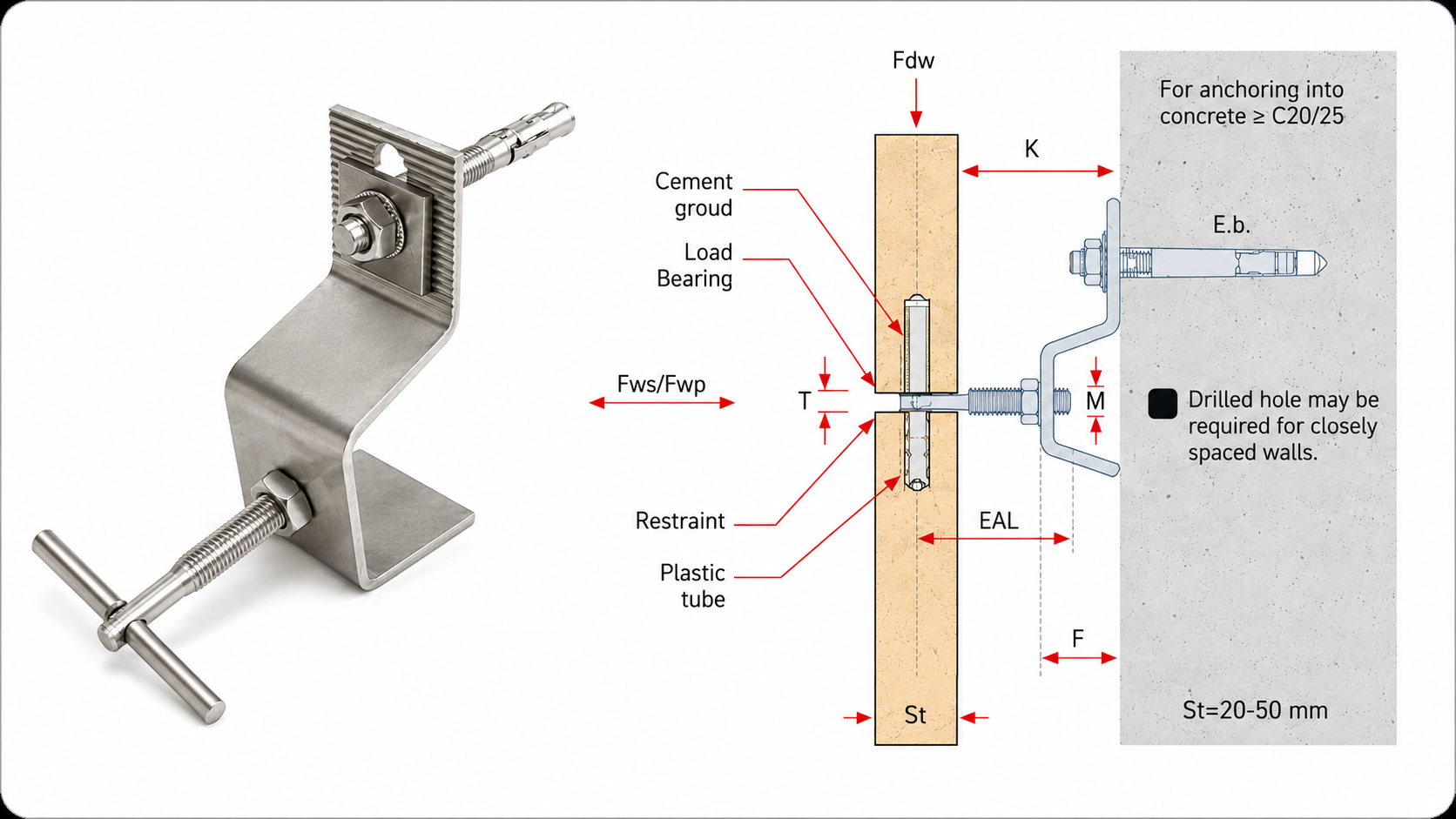

Choose the projection range first: K indicates the nominal projection, while K- and K+ show the adjustment range.
Match the dead load group with the project load requirement: 200 N to 800 N options are available in this series.
Confirm bolt size, pin diameter, adjustable arm metric size, arm thickness, and arm length against drawings or site conditions.
Material options can include AISI 304 / 316 and EN 1.4301 / 1.4401 / 1.4404 / 1.4571 upon request.

View full 24-row engineering table

AODSON Code	Projection K (mm)	Min. Projection K- (mm)	Max. Projection K+ (mm)	Dead Load Fdw (N)	Forming Size F (mm)	Wind Pressure FwP (N)	Wind Suction Fws (N)	Expansion Bolt	Pin Diameter (mm)	Adj. Arm Metric	Arm Thickness (mm)	Arm Length (mm)
ADS01-452	45	40	60	200	10	312	219	M8X80	5	M10	3.5	60
ADS01-552	55	50	70	200	20	312	219	M8X80	5	M10	3.5	60
ADS01-752	75	60	90	200	40	312	219	M8X80	5	M10	3.5	70
ADS01-952	95	80	110	200	60	312	219	M8X80	5	M10	3.5	70
ADS01-553	55	45	70	300	20	468	328	M8X80	5	M10	3.5	60
ADS01-753	75	60	90	300	40	468	328	M8X80	5	M10	3.5	60
ADS01-953	95	80	110	300	60	468	328	M8X80	5	M10	3.5	60
ADS01-1153	115	100	130	300	80	468	328	M8X80	5	M10	3.5	60
ADS01-554	55	45	70	400	10	624	437	M8X80	5	M12	4.5	70
ADS01-754	75	60	90	400	20	624	437	M8X80	5	M12	4.5	80
ADS01-954	95	80	110	400	40	624	437	M8X80	5	M12	4.5	80
ADS01-1154	115	100	130	400	60	624	437	M8X80	5	M12	4.5	80
ADS01-755	75	60	90	500	20	780	546	M8X80	5	M12	4.5	80
ADS01-955	95	80	110	500	40	780	546	M8X80	5	M12	4.5	80
ADS01-1155	115	100	130	500	60	780	546	M8X80	5	M12	4.5	80
ADS01-1355	135	120	150	500	80	780	546	M8X80	5	M12	4.5	80
ADS01-756	75	60	90	600	20	936	655	M10X90	6	M14	5.5	80
ADS01-956	95	80	110	600	40	936	655	M10X90	6	M14	5.5	80
ADS01-1156	115	100	130	600	60	936	655	M10X90	6	M14	5.5	80
ADS01-1356	135	120	150	600	80	936	655	M10X90	6	M14	5.5	80
ADS01-758	75	60	90	800	20	1235	865	M10X90	6	M14	5.5	80
ADS01-958	95	80	110	800	40	1235	865	M10X90	6	M14	5.5	80
ADS01-1158	115	100	130	800	60	1235	865	M10X90	6	M14	5.5	80
ADS01-1358	135	120	150	800	80	1235	865	M10X90	6	M14	5.5	80

Product Code & Shape Options

ADS01 - 45 2 A

ADS01: product series / type
45: projection in millimeters
2: dead load class reference

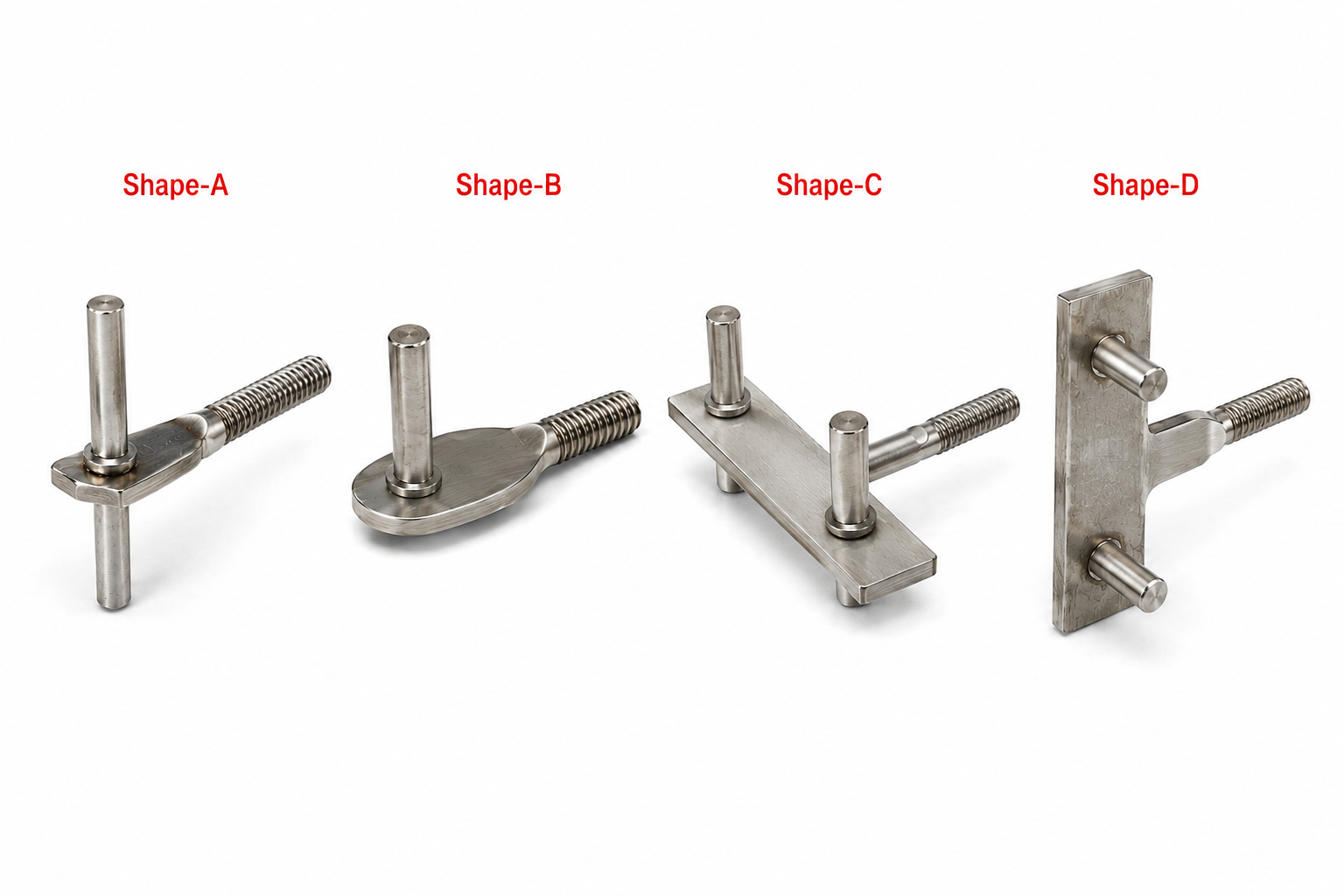

A: bracket shape option

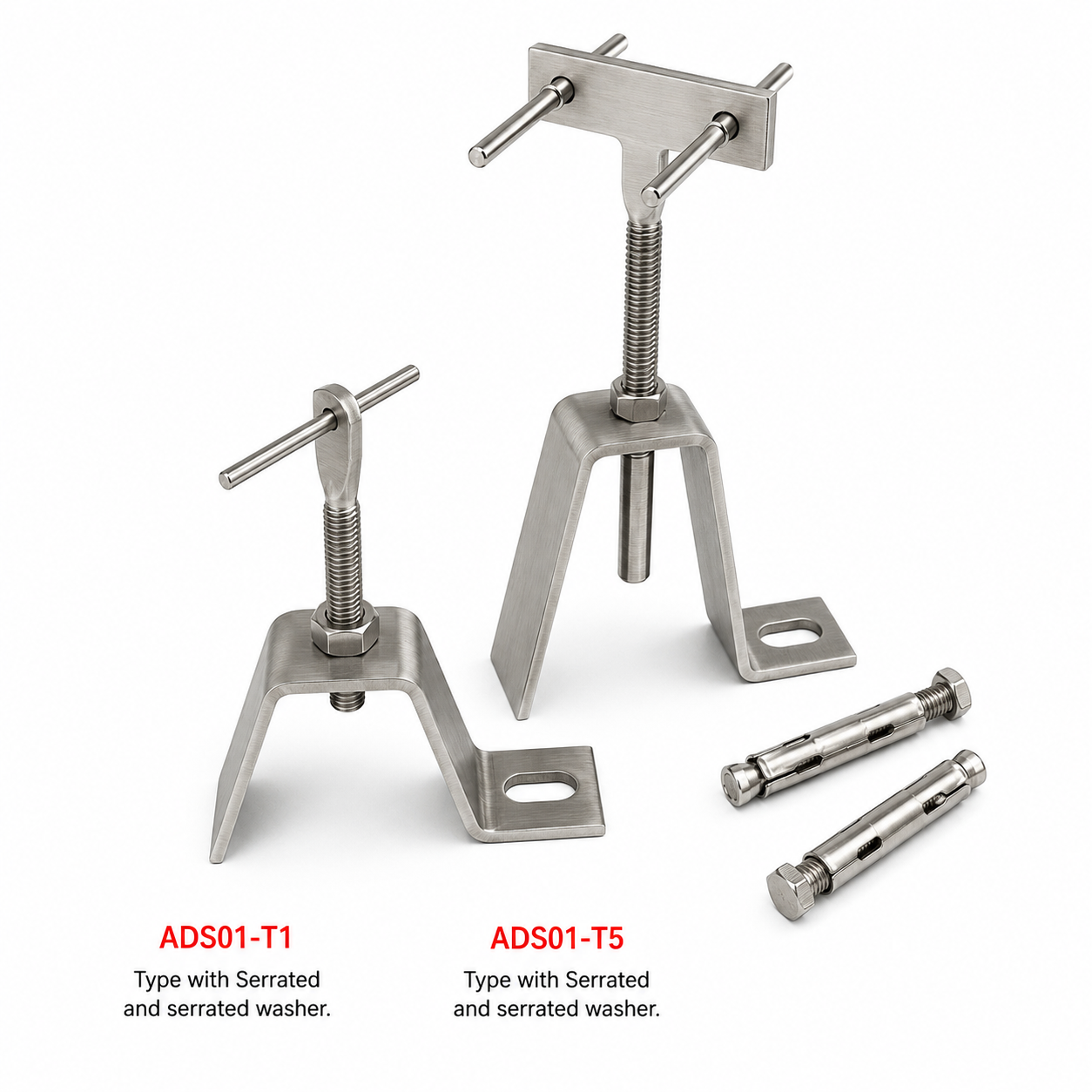

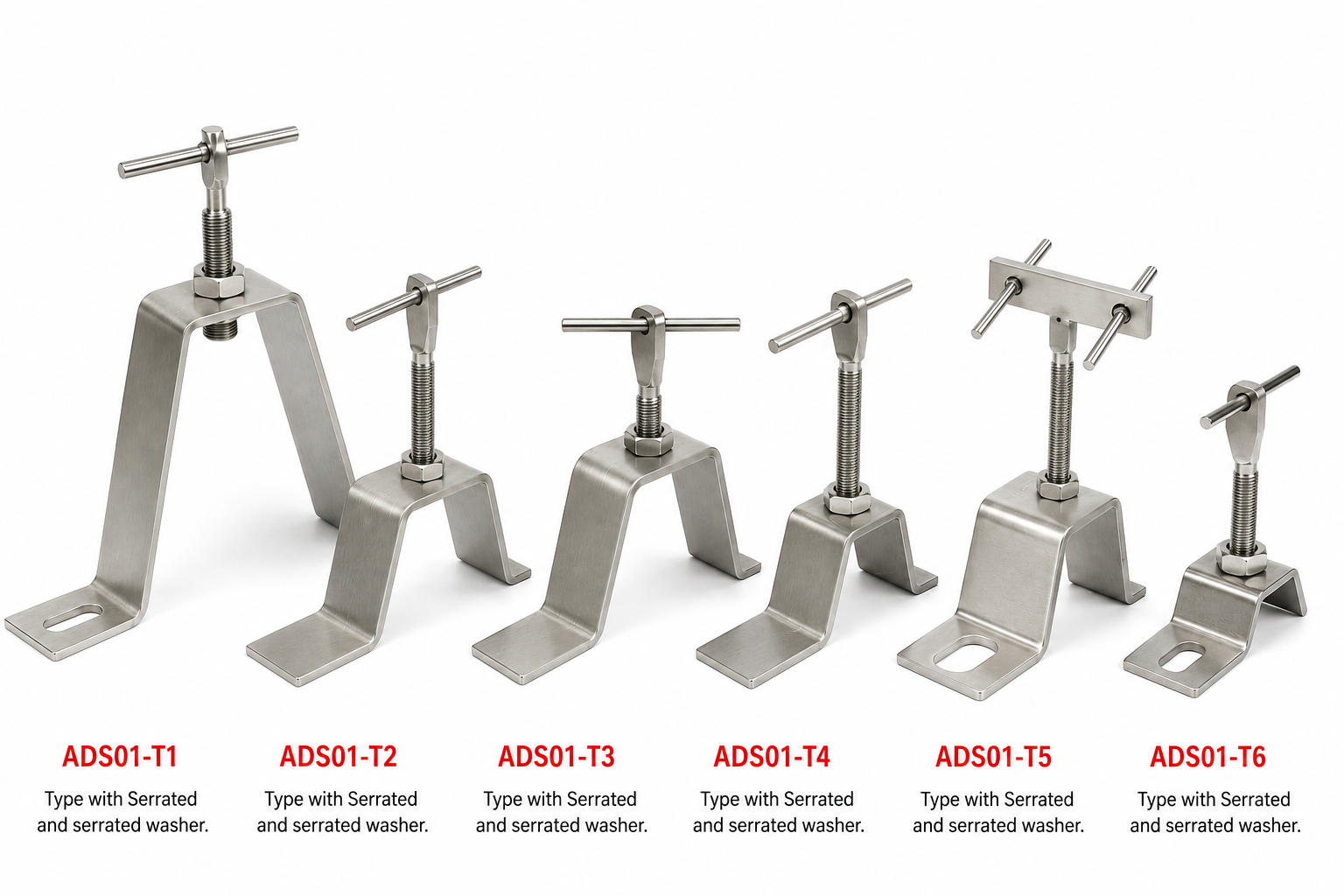

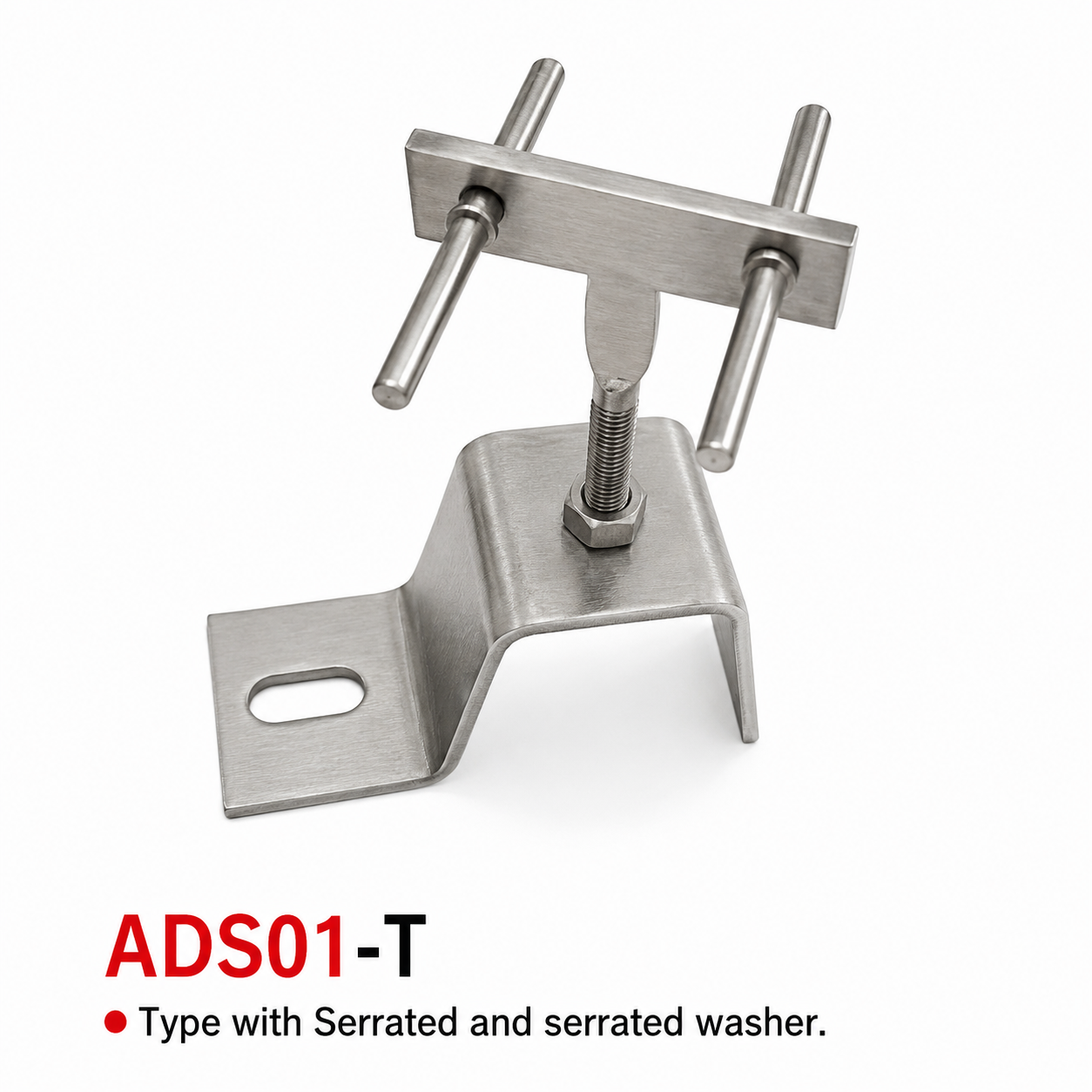

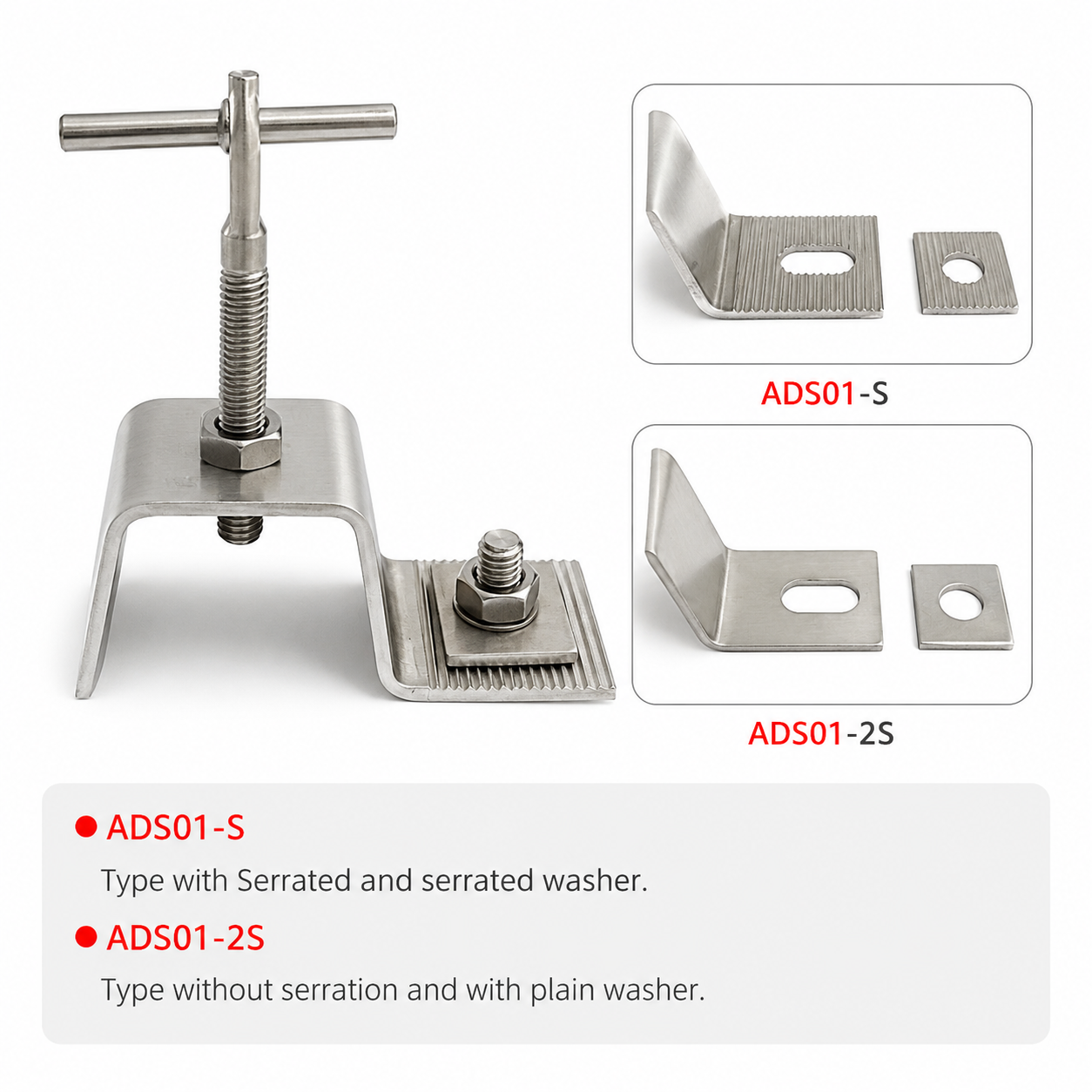

ADS01-S / ADS01-T series Type with serrated contact surface and serrated washer options.

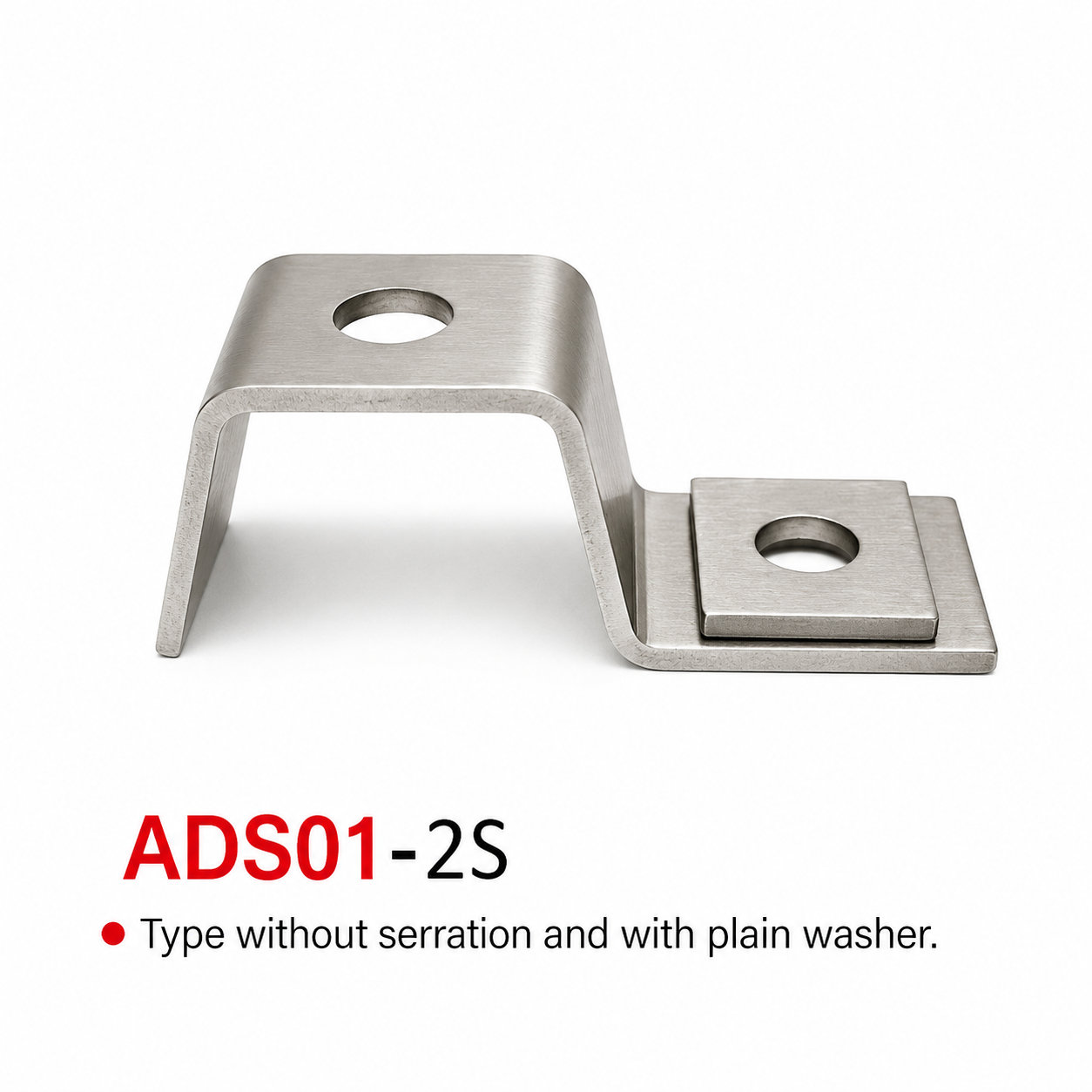

ADS01-2S / plain washer option Type without serration and with plain washer option, confirmed by project requirement.

Installation & Application Reference

Connected Engineering Data

Product, material and manufacturing expertise

Use these verified paths to move between product specifications, material data and AODSON manufacturing capabilities.

Material Data

Review grade properties and compatible products.

Manufacturing Process

See process guidance, tolerances and typical applications.

AODSON Capabilities

Continue to the main website for manufacturing capability details.

Applications

Stone cladding and facade fixing systems

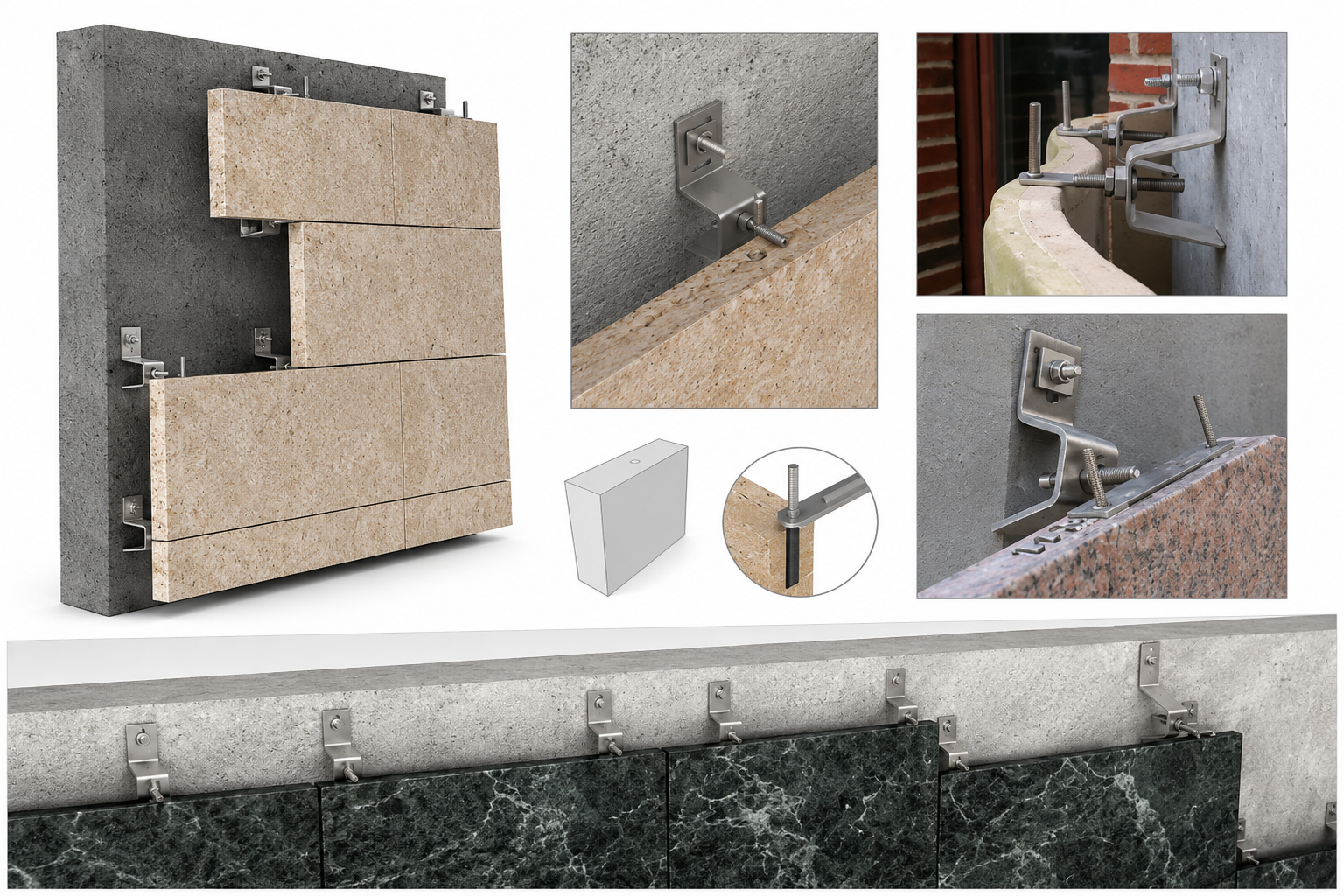

Typical installation includes anchoring to load-bearing walls with expansion bolts and reviewing insulation cut-back, re-insertion, and sealing requirements to reduce thermal bridging. Final fixing method should be confirmed by project drawings and site conditions.
